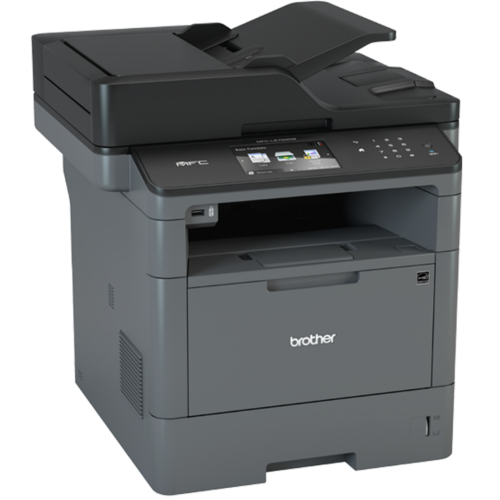

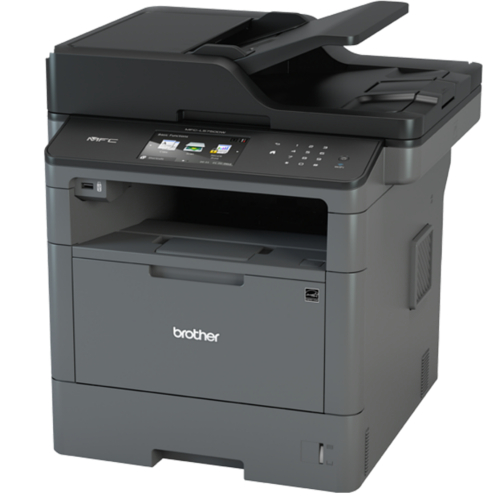

Brother MFC-L5700DN Pro 4-In-One Mono Laser Printer Fax Auto Duplex Network

Specification

General
Printer Type: Mono
Functions: Print, Copy and Scan, Fax
Display: Colour touchscreen
Display size: 9.3cm Colour touchscreen
Laser classification: Class 1 Laser Product (IEC 60825-1:2007)
Max paper size: A4
Memory: 256MB
Processor: Cortex-A9 800MHz
Technology: Laser

Connectivity
Connectivity: Wired Network, USB
Local interface: Hi-Speed USB 2.0 & USB Host for direct print and scan from a USB Flash Drive
Wired network interface: Ethernet (10Base-T/100Base-TX)

Mobile Connectivity
Supported: AirPrint, Android Print Service Plugin, Cortado Cloud Print™, Google Cloud Print 2.0, iPrint&Scan, Mopria

Copying
Resolution: Up to 1200 x 600 dpi

Dimensions & weights
With carton: 545(w) x 520(d) x 641(h) mm
With carton: 20.1 kg
Without carton: 435(w) x 427(d) x 486(h) mm
Weight: 16.5 kg

Environment accreditation
Blue Angel environmental accreditation: Yes
Energy Star environmental accreditation: Yes
Nordic Swan environmental accreditation: Yes
Sound power: Printing 6.67BA, Quiet mode printing 6.47BA, Ready mode up to 4.80BA
Sound pressure: Printing 54dBA, Quiet Mode printing 52dBA, Ready mode up to 35dBA
Typical electrical consumption: 1.832 KWh / Week

Faxing
Fax modem: 33.6 Kb per second
Internet fax: Yes (Available as a download from support.brother.com)
PC Fax: Send and Receive

In the Box
Contents: Fax line cord, Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Media specifications
Types and weights: Standard & Optional Trays – plain, recycled, colored and letterhead paper (between 60 – 120gsm). Multi-Purpose Tray – plain, recycled, bond, colored and letterhead paper (between 60 – 200gsm). 2-sided Print – plain, recycled, colored and letterhead paper (between 60 – 105gsm)
Sizes: Standard Tray – A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal. Optional Tray – A4, Letter, A5, Executive, Legal, Folio, Mexico Legal, India Legal. Multi-Purpose (MP) Tray – Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. 2-sided Print – A4. Automatic Document Feeder (ADF) – Width: 105mm to 215.9mm x Length: 147.3mm to 355.6mm

Network
Wired network security: APOP*, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3*, IMAP4*), SNMP v3, Kerberos, IPSec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) *When Internet FAX has been downloaded.

Operating systems
Supported: Windows®: Windows 10® (32 & 64 bit editions), Windows 8® (32 & 64 bit editions),Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). Note that Windows® Server supports network printing only. / Mac: OS X 10.8.5, 10.9.x, 10.10.x, 10.11.x or greater / Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handling
Paper Input: Lower Tray – 250 sheets, Multi-Purpose Tray – 50 sheets, Automatic Document Feeder (ADF) – 50 sheets
Paper Output: Face Down – 150 sheets, Face Up (Straight Paper Path) – 1 sheet

Printing
A4 2-sided print speed: 20
A4 standard print speed: 40
Resolution: Up to 1,200 x 1,200dpi
Automatic 2 sided print: Yes
Emulations: PCL6, BR-Script3 (Postscript®3™ Language Emulation), IBM Proprinter XL, Epson FX-850, PDF Version 1.7, XPS Version 1.0
First print out time: 7.2 seconds
Recommended monthly volume: Up to 3,500 pages

Scanning
Resolution: Up to 1,200 x 1,200dpi (from flatbed), 600 x 600dpi (from ADF), 19,200 x 19,200dpi (Enhanced)
Speed: Mono: 24ipm, Colour: 20ipm
Scanner type: CIS

Security features
802.1x: Yes
IP filter: Yes
Secure function lock v3: Yes
Secure print: Yes
Secure printing with SSL: Yes

Solutions
Supported: AirPrint, Android Print Service Plugin, Box, Brother Apps, BSI, Cortado Cloud Print, Dropbox, Evernote, Facebook, Flickr, Google Cloud Print 2.0, Google Drive, iPrint&Scan, ISIS, Managed Print Services, Mopria, OneDrive, OneNote, Picasa, PrintSmart Solutions

Supplies and accessories
Accessories: Optional Lower Tray LT-5500 – Up to 250 sheets, Optional Lower Tray LT-6500 – Up to 520 sheets, Filter Holder FH-1000 (Germany only)
Supplies: Inbox Toner Approx. 2,000 pages, Standard Toner TN-3430 – Approx. 3,000 pages, High Yield Toner TN-3480 – Approx. 8,000 pages, Drum DR-3400 – Approx. 50,000 A4 pages (3 pages per job) / 30,000 A4 pages (1 page per job)

Warranty
Two Year Manufacturer’s Warranty (Year 1 on-site, Year 2 Back to base)
